-15%Barndominium
Crown Range— DHP 0010
Packages from
$1,441
$1,695
-15%
2,030Square Footage
3Bedrooms
2Bathrooms
1Half Baths
1Stories
102'Width
67'Depth
3Garage

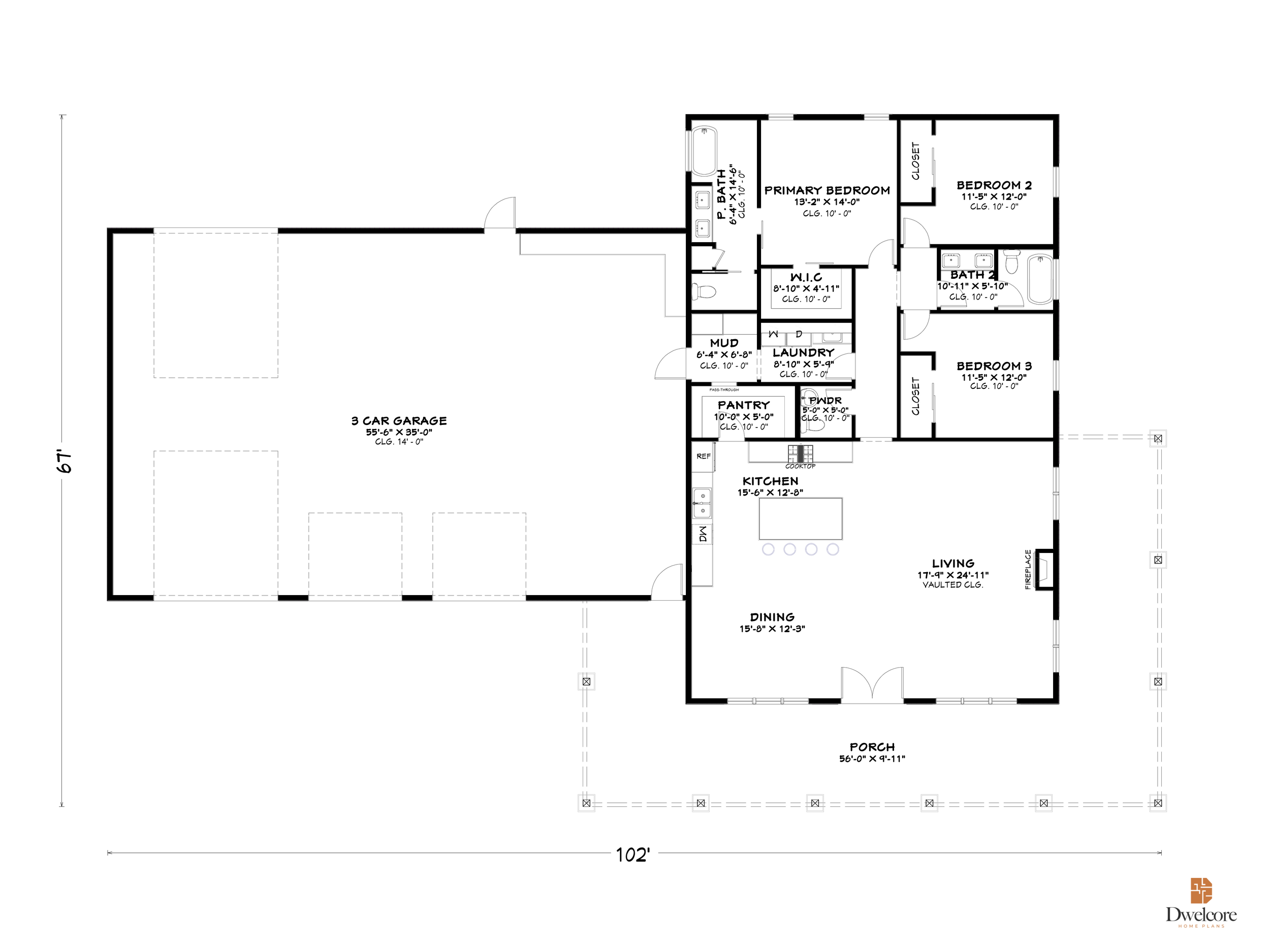

Floor Plan
Study the layout, flip it to compare, or print a copy for reference.
Reverse and print reflect what’s on screen and are for reference only.
Plan Specifications
Overview
Floors1
Bedrooms3
Bathrooms2
Half Baths1
Total Finished Area2,030 Sq Ft
Areas & Spaces
1st Floor2,030 Sq Ft
2nd Floor—
Garage Area2,014 Sq Ft
Garage Capacity3 Cars
Porch922 Sq Ft
Covered Patios—
Uncovered Patios—
Total Under Roof4,966 Sq Ft
Footprint & Height
Width102' 0"
Depth67' 0"
Ridge Height24' 7"
1st Floor Ceiling Height10' 0"
2nd Floor Ceiling Height—
Building Lot Type—
Construction
Foundation TypeSlab On Grade
Primary Wall Framing2x6
Roof Framing16" on centre
Roof Pitch4/12
Notes
Specs shown are as-drawn. Local code, soil, and climate may require adjustments — use our modification service to adapt this plan.
Packages From
$1,441
$1,695
-15%One-time · Digital delivery in 48 hrs
Foundation
Additional Options
Total price:$1,695$1,441
Reverse plans, wall conversions, foundation conversions, and material lists are prepared on demand. Please allow 1–2 business days for delivery of these files.
Calculate Build Cost·
Secure checkoutInstant accessExpert support
Love the plan but need a few changes?
Tell us what would make the layout work better for you. We will review your request and provide the available scope, price and estimated timeline before work begins.
Ready to Build
Purchase the Crown Range
and break ground with confidence.
Your complete document set, developed with reference to the 2021 IRC — floor plans, elevations, electrical, plumbing, and spec sheet — delivered to your inbox within 48 hours.
