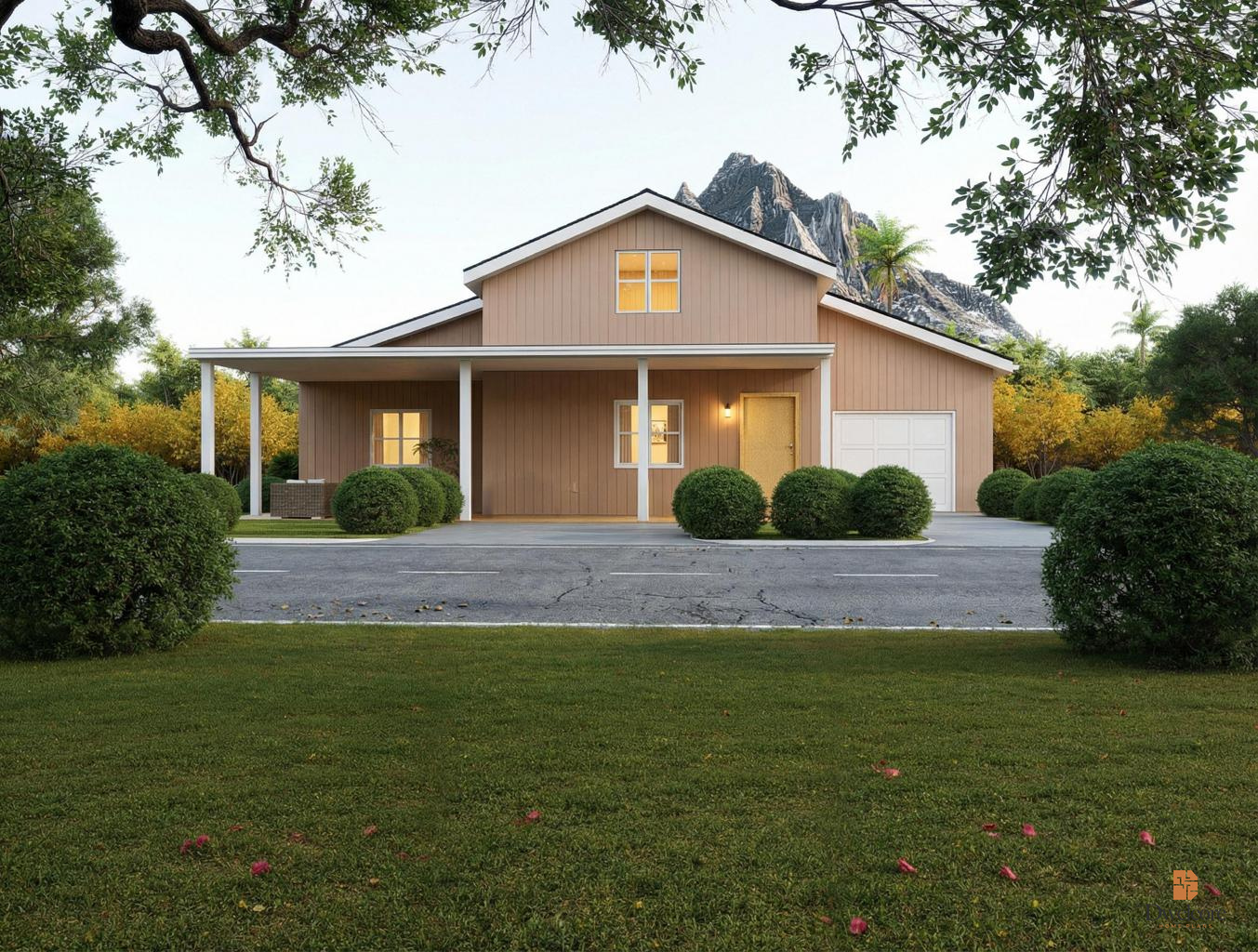

Barndominium

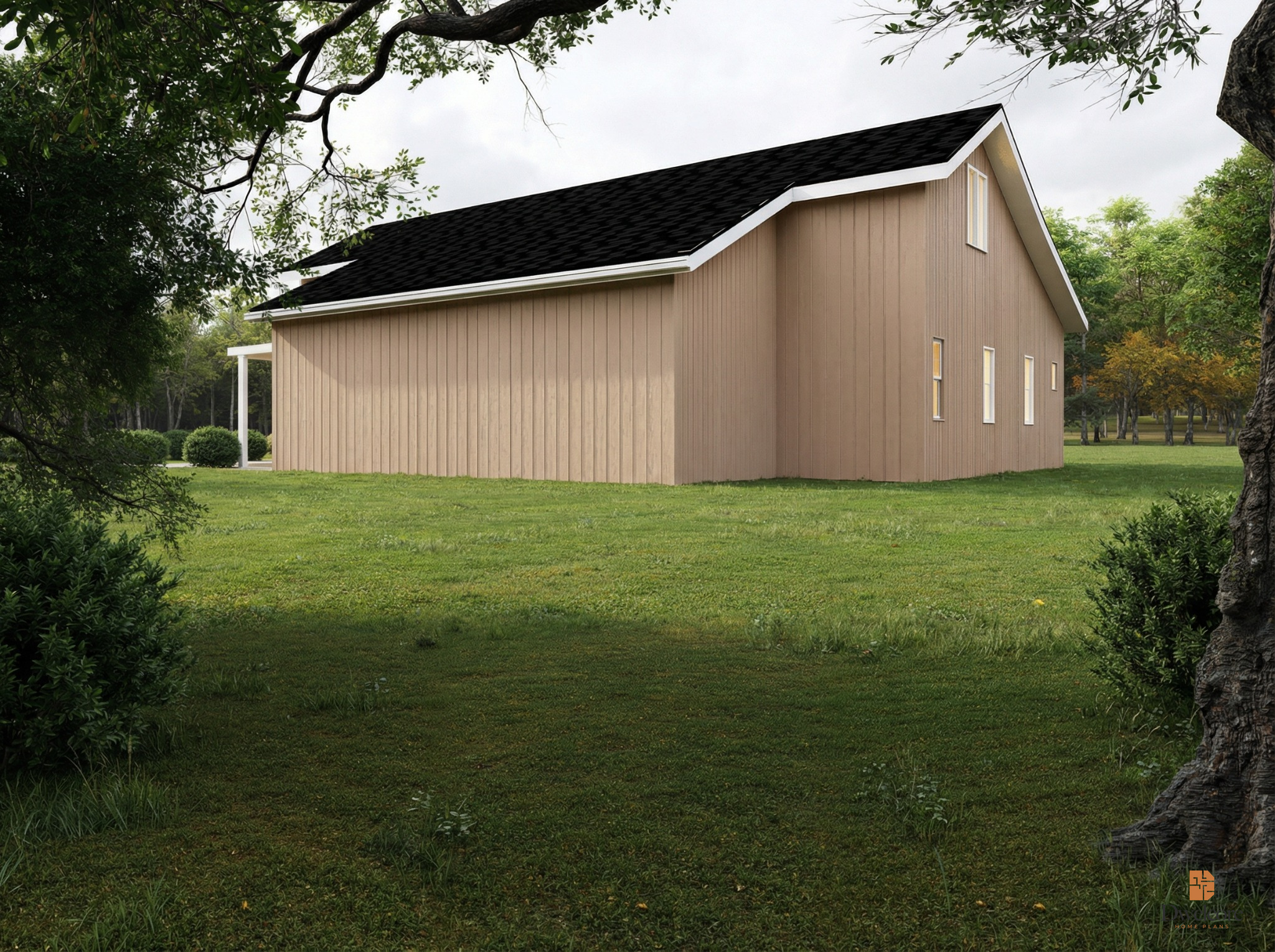

Wolf Falls— DHP 0110
Packages from
$1,295
1,485Square Footage
1Bedrooms
1Bathrooms
0Half Baths
2Stories
47'Width
40' 8"Depth
1Garage

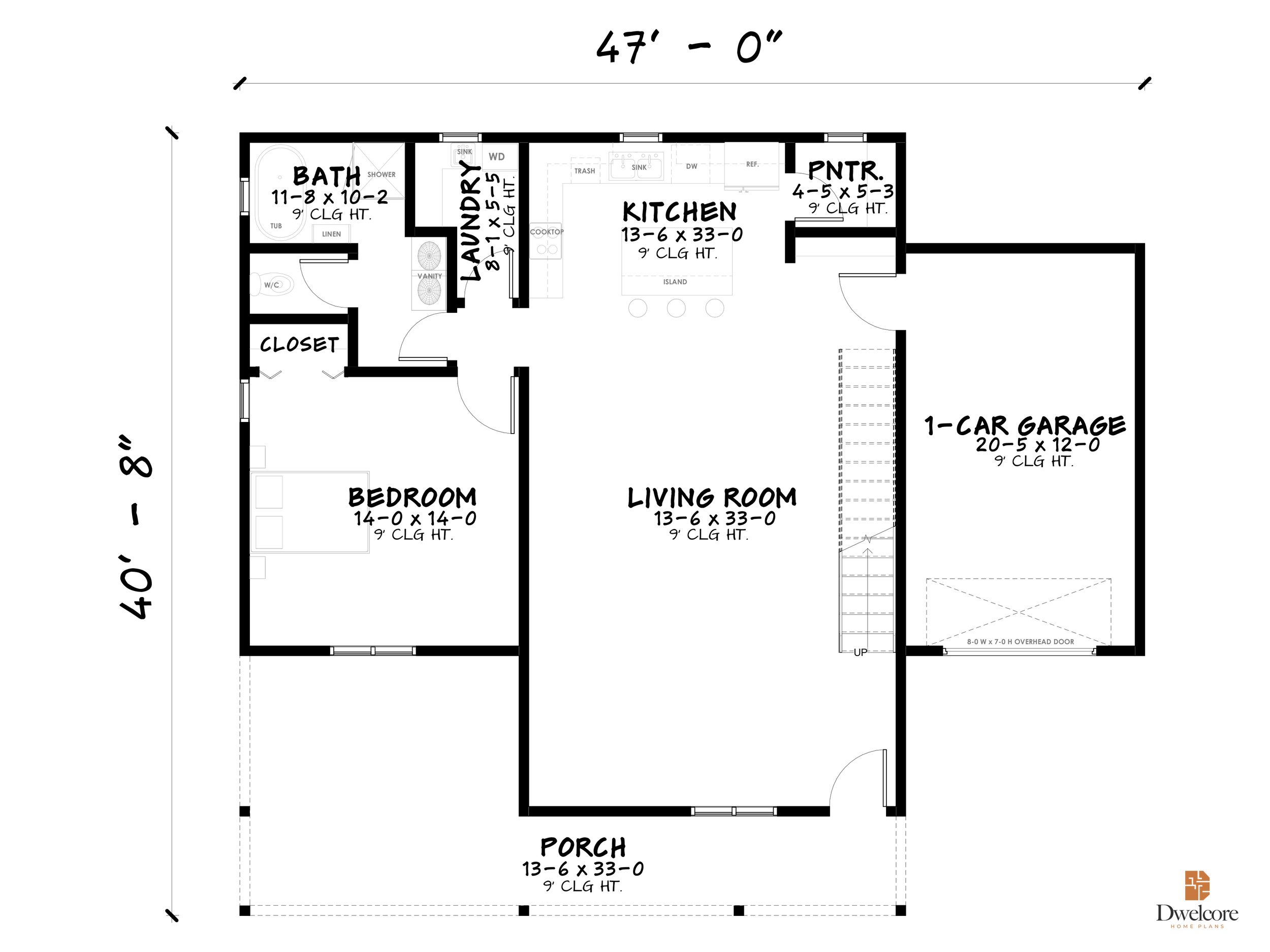

Floor Plan
Study the layout, flip it to compare, or print a copy for reference.
Reverse and print reflect what’s on screen and are for reference only.
Plan Specifications
Overview
Floors2
Bedrooms1
Bathrooms1
Half Baths—
Total Finished Area1,485 Sq Ft
Areas & Spaces
1st Floor1,130 Sq Ft

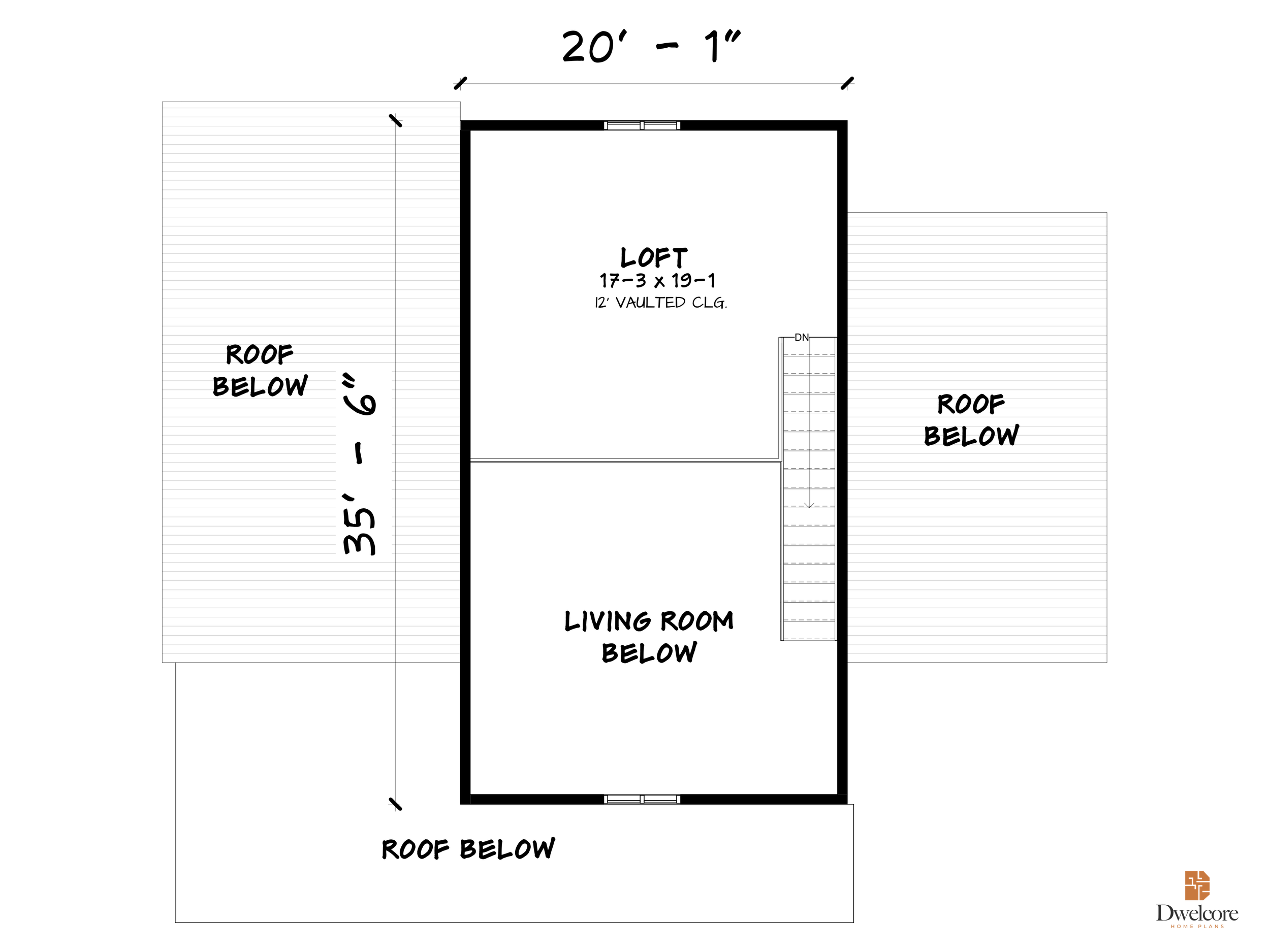

2nd Floor355 Sq Ft
Garage Area245 Sq Ft
Garage Capacity1 Cars
Porch300 Sq Ft
Covered Patios—
Uncovered Patios—
Total Under Roof2,030 Sq Ft
Footprint & Height
Width47' 0"
Depth40' 8"
Ridge Height21' 0"
1st Floor Ceiling Height9' 0"
2nd Floor Ceiling Height—
Building Lot Type—
Construction
Foundation TypeSlab On Grade
Primary Wall Framing2x6
Roof Framing16" on centre
Roof Pitch6/12
Notes
Specs shown are as-drawn. Local code, soil, and climate may require adjustments — use our modification service to adapt this plan.
Packages From
$1,295
One-time · Digital delivery in 48 hrs
Foundation
Additional Options
Total price:$1,295
Reverse plans, wall conversions, foundation conversions, and material lists are prepared on demand. Please allow 1–2 business days for delivery of these files.
Calculate Build Cost·
Secure checkoutInstant accessExpert support
Love the plan but need a few changes?
Tell us what would make the layout work better for you. We will review your request and provide the available scope, price and estimated timeline before work begins.
Ready to Build
Purchase the Wolf Falls
and break ground with confidence.
Your complete document set, developed with reference to the 2021 IRC — floor plans, elevations, electrical, plumbing, and spec sheet — delivered to your inbox within 48 hours.
