PremiumBarndominium
River Path— DHP 0012
Packages from
$2,095
3,105Square Footage
5Bedrooms
4Bathrooms
1Half Baths
2Stories
94'Width
54'Depth
3Garage

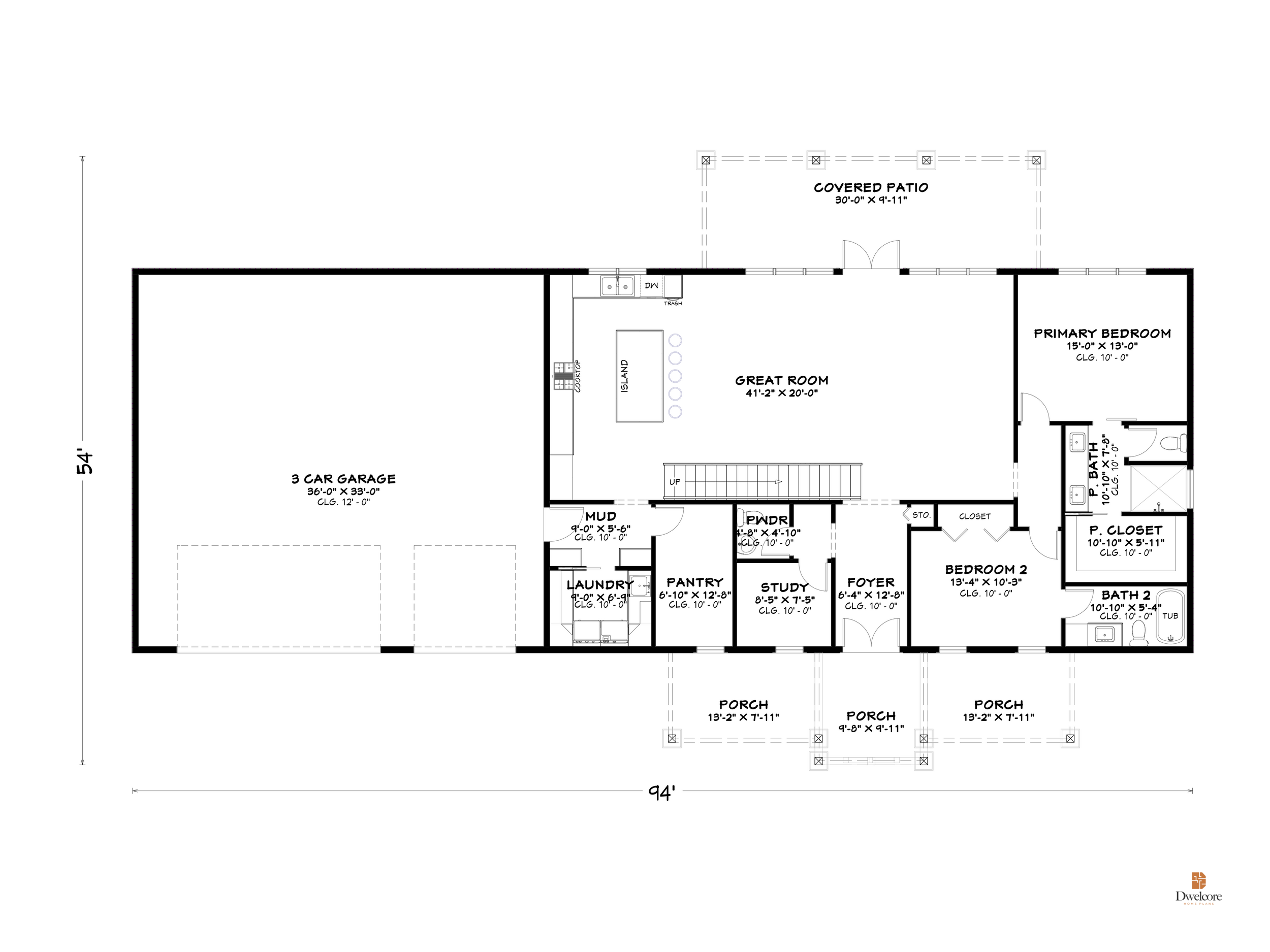

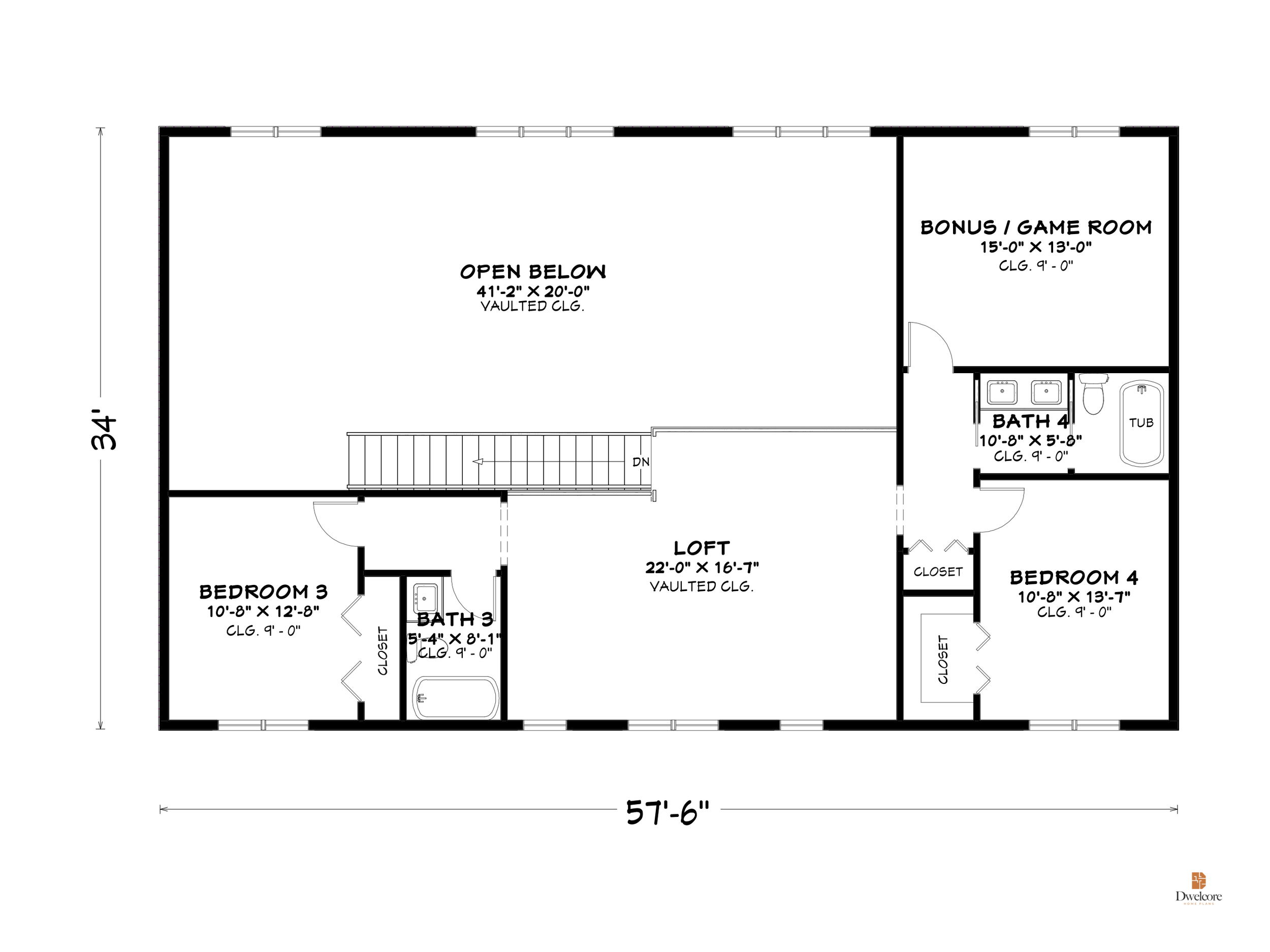

Floor Plan
Study the layout, flip it to compare, or print a copy for reference.
Reverse and print reflect what’s on screen and are for reference only.
Plan Specifications
Overview
Floors2
Bedrooms5
Bathrooms4
Half Baths1
Total Finished Area3,105 Sq Ft
Areas & Spaces
1st Floor1,955 Sq Ft
2nd Floor1,150 Sq Ft
Garage Area1,241 Sq Ft
Garage Capacity3 Cars
Porch307 Sq Ft
Covered Patios300 Sq Ft
Uncovered Patios—
Total Under Roof4,953 Sq Ft
Footprint & Height
Width94' 0"
Depth54' 0"
Ridge Height28' 4"
1st Floor Ceiling Height10' 0"
2nd Floor Ceiling Height9' 0"
Building Lot Type—
Construction
Foundation TypeSlab On Grade
Primary Wall Framing2x6
Roof Framing16" On Centre
Roof Pitch6/12
Notes
Specs shown are as-drawn. Local code, soil, and climate may require adjustments — use our modification service to adapt this plan.
Packages From
$2,095
One-time · Digital delivery in 48 hrs
Foundation
Additional Options
Total price:$2,095
Reverse plans, wall conversions, foundation conversions, and material lists are prepared on demand. Please allow 1–2 business days for delivery of these files.
Calculate Build Cost·
Secure checkoutInstant accessExpert support
Love the plan but need a few changes?
Tell us what would make the layout work better for you. We will review your request and provide the available scope, price and estimated timeline before work begins.
Ready to Build
Purchase the River Path
and break ground with confidence.
Your complete document set, developed with reference to the 2021 IRC — floor plans, elevations, electrical, plumbing, and spec sheet — delivered to your inbox within 48 hours.
