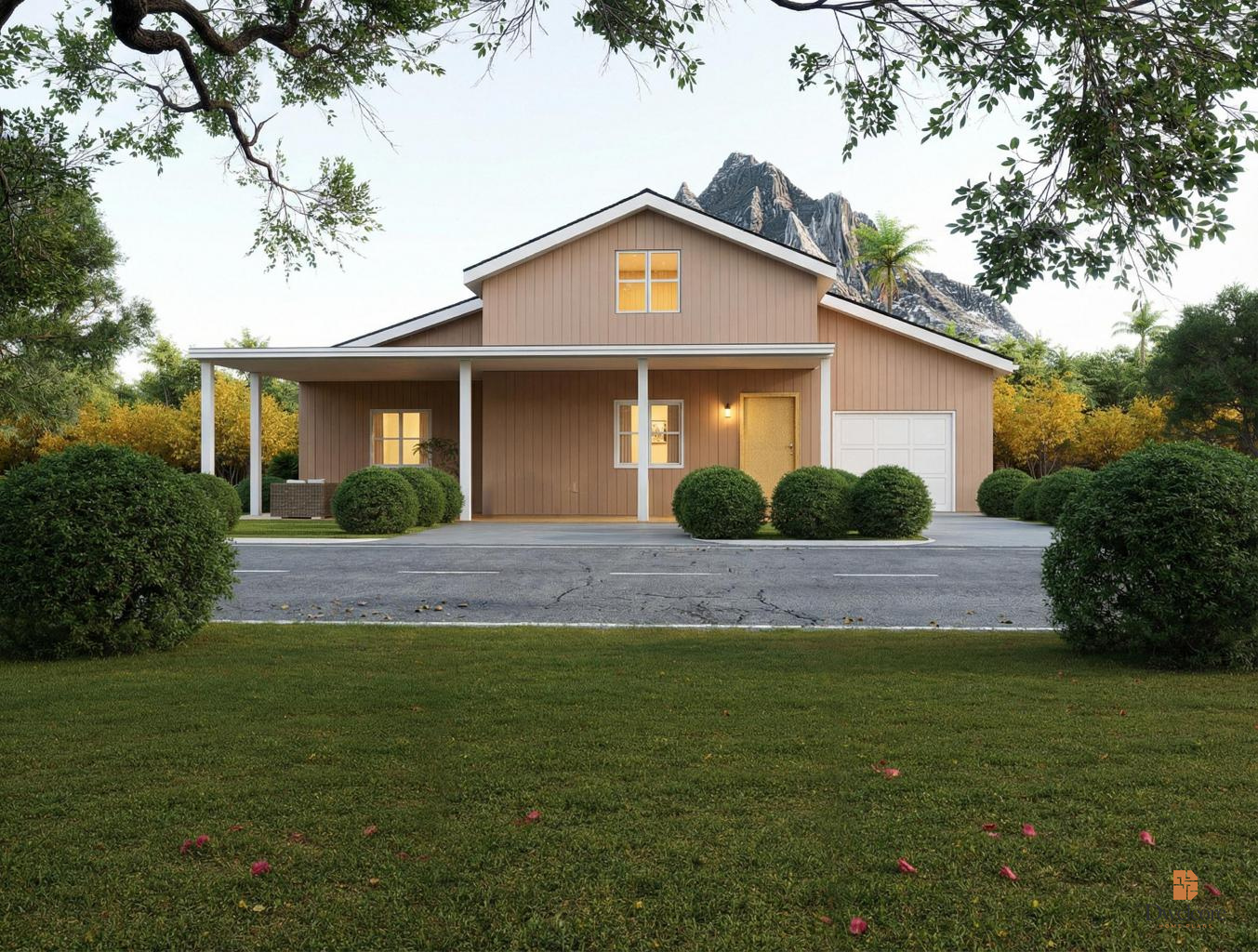

Wolf Falls— DHP 0110
1,485 sq ft
1 Bed
1 Bath
2 Stories
47' Width
40' 8" Depth
1 Car
Starting from
$1,295
NewBarndominium

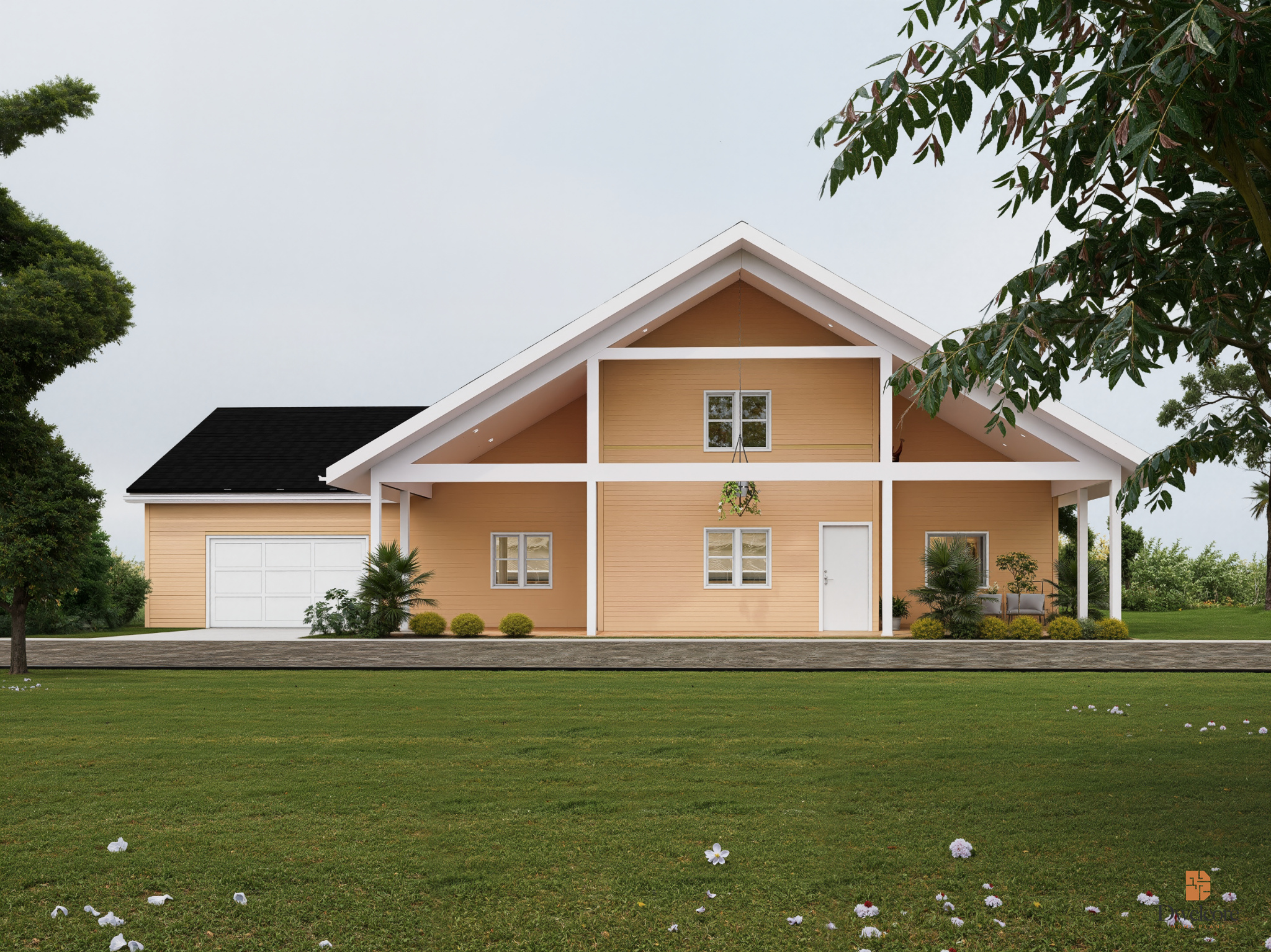

Pine View— DHP 0109
Packages from
$1,495
1,612Square Footage
2Bedrooms
2Bathrooms
0Half Baths
2Stories
65' 7"Width
45' 4"Depth
2Garage

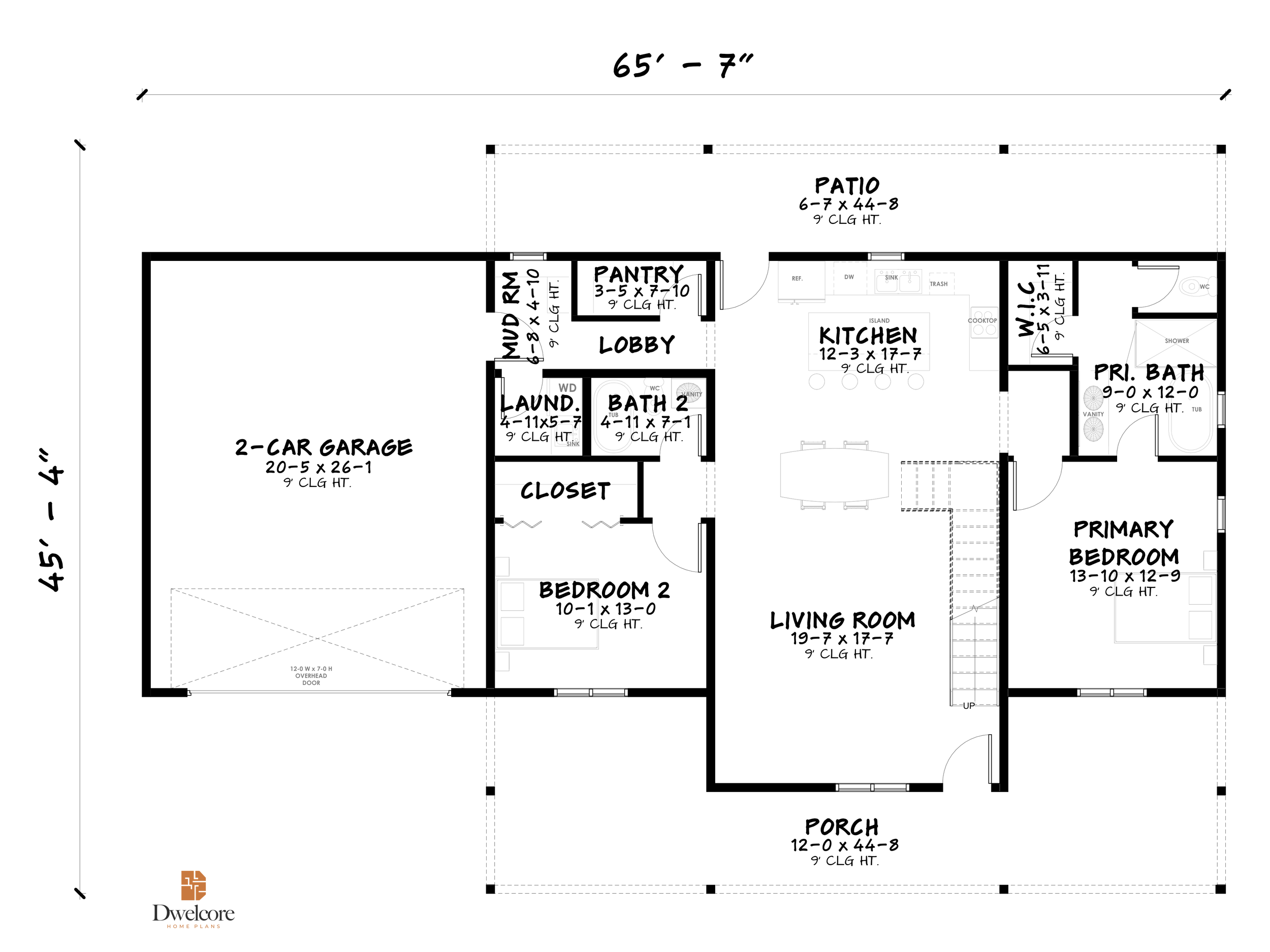

Floor Plan
Study the layout, flip it to compare, or print a copy for reference.
Reverse and print reflect what’s on screen and are for reference only.
Plan Specifications
Overview
Floors2
Bedrooms2
Bathrooms2
Half Baths—
Total Finished Area1,612 Sq Ft
Areas & Spaces
1st Floor1,342 Sq Ft

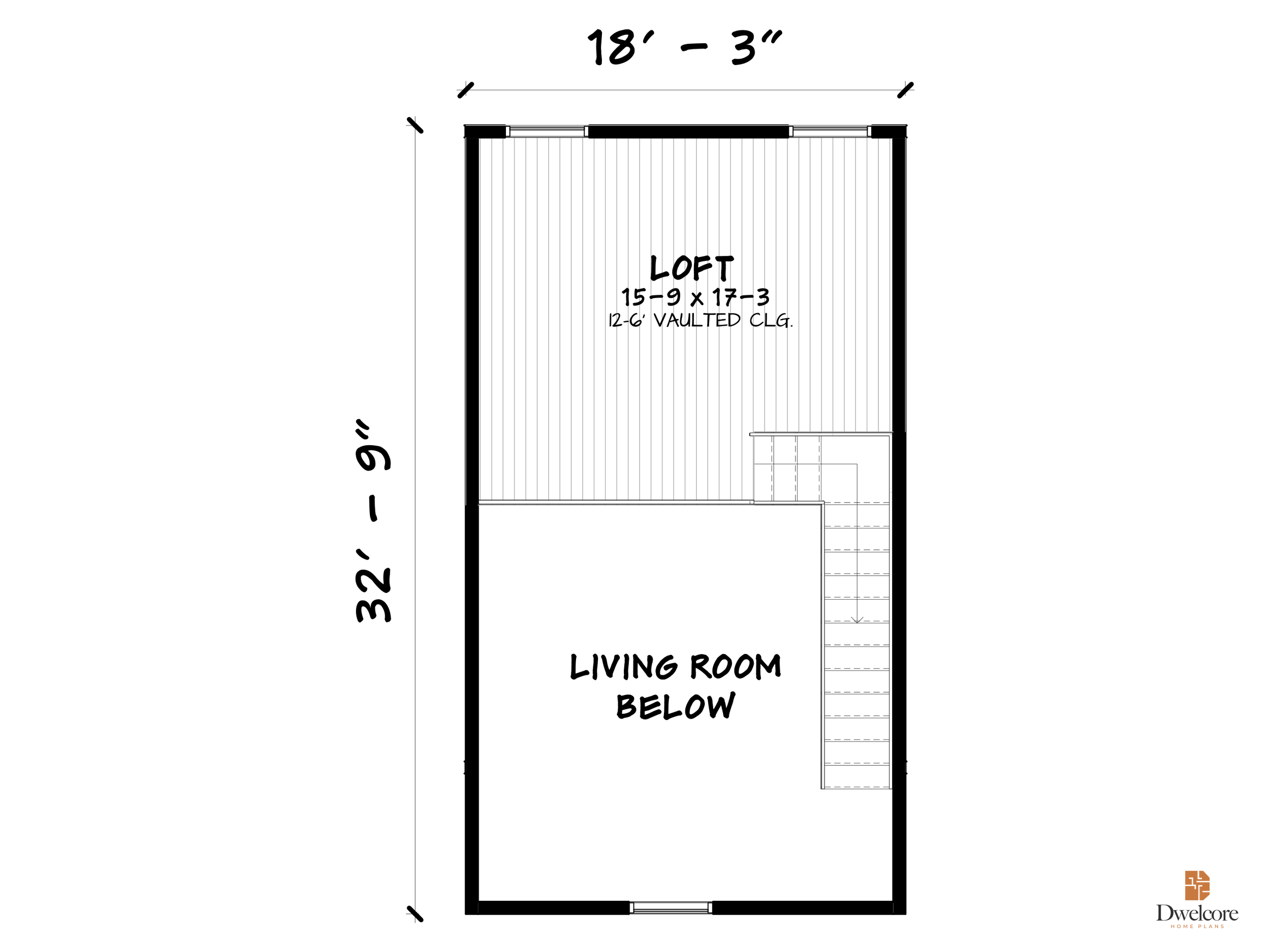

2nd Floor270 Sq Ft
Garage Area527 Sq Ft
Garage Capacity2 Cars
Porch428 Sq Ft
Covered Patios291 Sq Ft
Uncovered Patios—
Total Under Roof2,858 Sq Ft
Footprint & Height
Width65' 7"
Depth45' 4"
Ridge Height27' 9"
1st Floor Ceiling Height9' 0"
2nd Floor Ceiling Height—
Building Lot Type—
Construction
Foundation TypeSlab On Grade
Primary Wall Framing2x6
Roof Framing16" on centre
Roof Pitch9/12
Notes
Specs shown are as-drawn. Local code, soil, and climate may require adjustments — use our modification service to adapt this plan.
Packages From
$1,495
One-time · Digital delivery in 48 hrs
Foundation
Additional Options
Total price:$1,495
Reverse plans, wall conversions, foundation conversions, and material lists are prepared on demand. Please allow 1–2 business days for delivery of these files.
Calculate Build Cost·
Secure checkoutInstant accessExpert support
Love the plan but need a few changes?
Tell us what would make the layout work better for you. We will review your request and provide the available scope, price and estimated timeline before work begins.
Ready to Build
Purchase the Pine View
and break ground with confidence.
Your complete document set, developed with reference to the 2021 IRC — floor plans, elevations, electrical, plumbing, and spec sheet — delivered to your inbox within 48 hours.
