Cottage
Ochard Bluff— DHP 0102
Packages from
$1,095
361Square Footage
0Bedrooms
1Bathrooms
0Half Baths
1Stories
16'Width
27' 7"Depth
0Garage

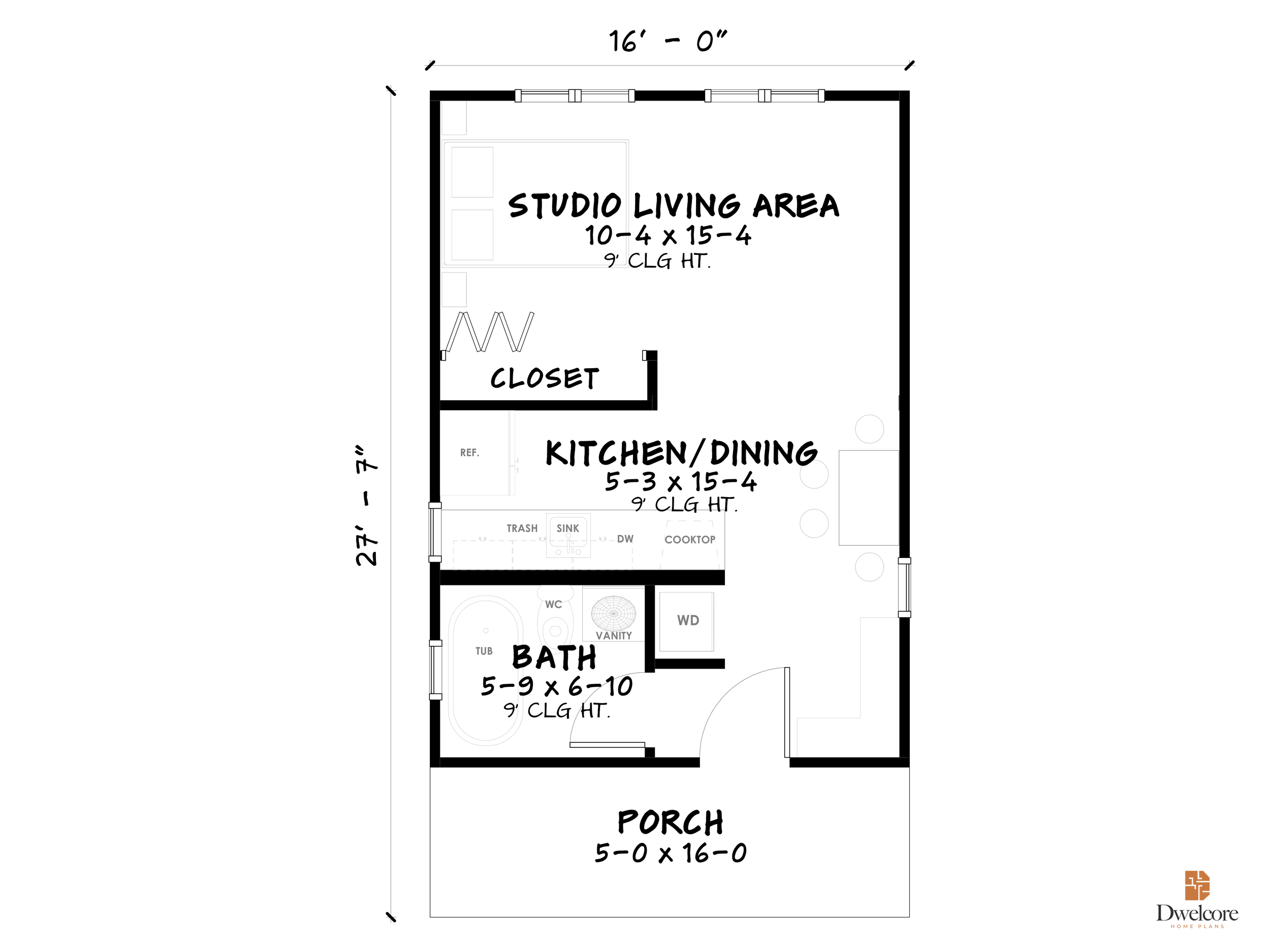

Floor Plan
Study the layout, flip it to compare, or print a copy for reference.
Reverse and print reflect what’s on screen and are for reference only.
Plan Specifications
Overview
Floors1
Bedrooms—
Bathrooms1
Half Baths—
Total Finished Area361 Sq Ft
Areas & Spaces
1st Floor361 Sq Ft
2nd Floor—
Garage Area—
Garage Capacity—
Porch80 Sq Ft
Covered Patios—
Uncovered Patios—
Total Under Roof441 Sq Ft
Footprint & Height
Width16' 0"
Depth27' 7"
Ridge Height12' 6"
1st Floor Ceiling Height9' 0"
2nd Floor Ceiling Height—
Building Lot Type—
Construction
Foundation TypeSlab On Grade
Primary Wall Framing2x4
Roof Framing16" on centre
Roof Pitch4/12
Notes
Specs shown are as-drawn. Local code, soil, and climate may require adjustments — use our modification service to adapt this plan.
Packages From
$1,095
One-time · Digital delivery in 48 hrs
Foundation
Additional Options
Total price:$1,095
Reverse plans, wall conversions, foundation conversions, and material lists are prepared on demand. Please allow 1–2 business days for delivery of these files.
Calculate Build Cost·
Secure checkoutInstant accessExpert support
Love the plan but need a few changes?
Tell us what would make the layout work better for you. We will review your request and provide the available scope, price and estimated timeline before work begins.
Ready to Build
Purchase the Ochard Bluff
and break ground with confidence.
Your complete document set, developed with reference to the 2021 IRC — floor plans, elevations, electrical, plumbing, and spec sheet — delivered to your inbox within 48 hours.
